EFL stand

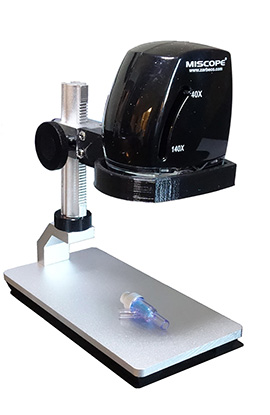

EFS stand

FFLamp optional folding fluorescent flood lamp

MiScope Extended Field Stands

The MiScope extended field stands are an affordable way to adjust the height on your MiScope Megapixel, lower the magnification and increase the field of view.

When used with the extended field of view MiScope-MP2EF (or MiScope-MP2EF-WUVIR) the EFS stand allows for an adjustable field of view as large as 2.25 inches across at 5x magnification. The EFLstand allows for an adjustable field of view as large as 3.5 inches across at 3.5x magnification.

When used with the MiScope Megapixel 2 the EFSstand and the EFLstand allow for an adjustable field of view as large as one inch across at 12x magnification.

When using the EFSstand at the largest field of view, auxiliary lighting may be required. Our FLLamp below is a low cost solution to add auxiliary lighting when the MiScope Megapixel EF is imaging an object from a distance.

(MiScope Megapixel 2 microscope is not included and must be purchased separately).

When using MiScope MP2EF-WUVIR on a stand, do not use the UV or IR LEDs. Warning: Infrared light is harmful. Do not expose eyes or skin to rays.

Warning: Ultraviolet light is harmful. Do not expose eyes or skin to rays.

Part Number Price   EFSstand $95   Stand for MiScope Megapixel EF images down to 5x magnification and 2.25 inches field of view.     EFLstand $175   Stand for MiScope Megapixel EF images down to 3.5x and 3.5inches field of view.     FFLamp $75   Optional lighting for EFLstand. Fluorescent flood, 13 Watt, with 120 Volt US AC adapter. One year warranty.
