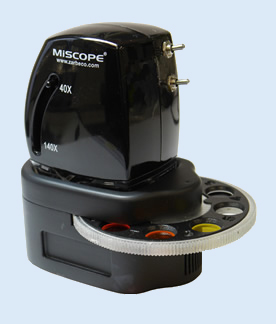

MiScope-MP2 Filter Wheel

IR Luminescence/Fluorescence Imaging Is Now Quick and Portable

The MiScope-MP2 Filter Wheel turns your MiScope-MP2 into an imaging luminescence/fluorescence comparator.

Built-in UV and deep blue LEDs allow you to select the excitation source wavelength (or use both wavelengths together). The filter wheel contains eight barrier cutoff filters in the range of 490 — 780 nm. With detents and a spring-loaded stop, the wheel turns easily but snaps into the correct position at each filter.

The MiScope Filter Wheel works with the all MiScope MP2 models including the MISC-MP2; MISC-MP2-IR; MISC-MP2-UV; and MISC-MP2-WUVIR.

Note that the MiScope Megapixel 2 is not included and must be purchased separately.



LED Source Wavelengths (nm): 390, 460 (selectable)

Filter Wavelengths (nm): 490, 550, 565, 610, 670, 700, 760, 780

Weight: less than 9 oz. including battery.

Includes the filter wheel (with 8 filters and 2 LED sources), LED power supply, 9 volt battery and calibration certificate for filters.

Images & Video

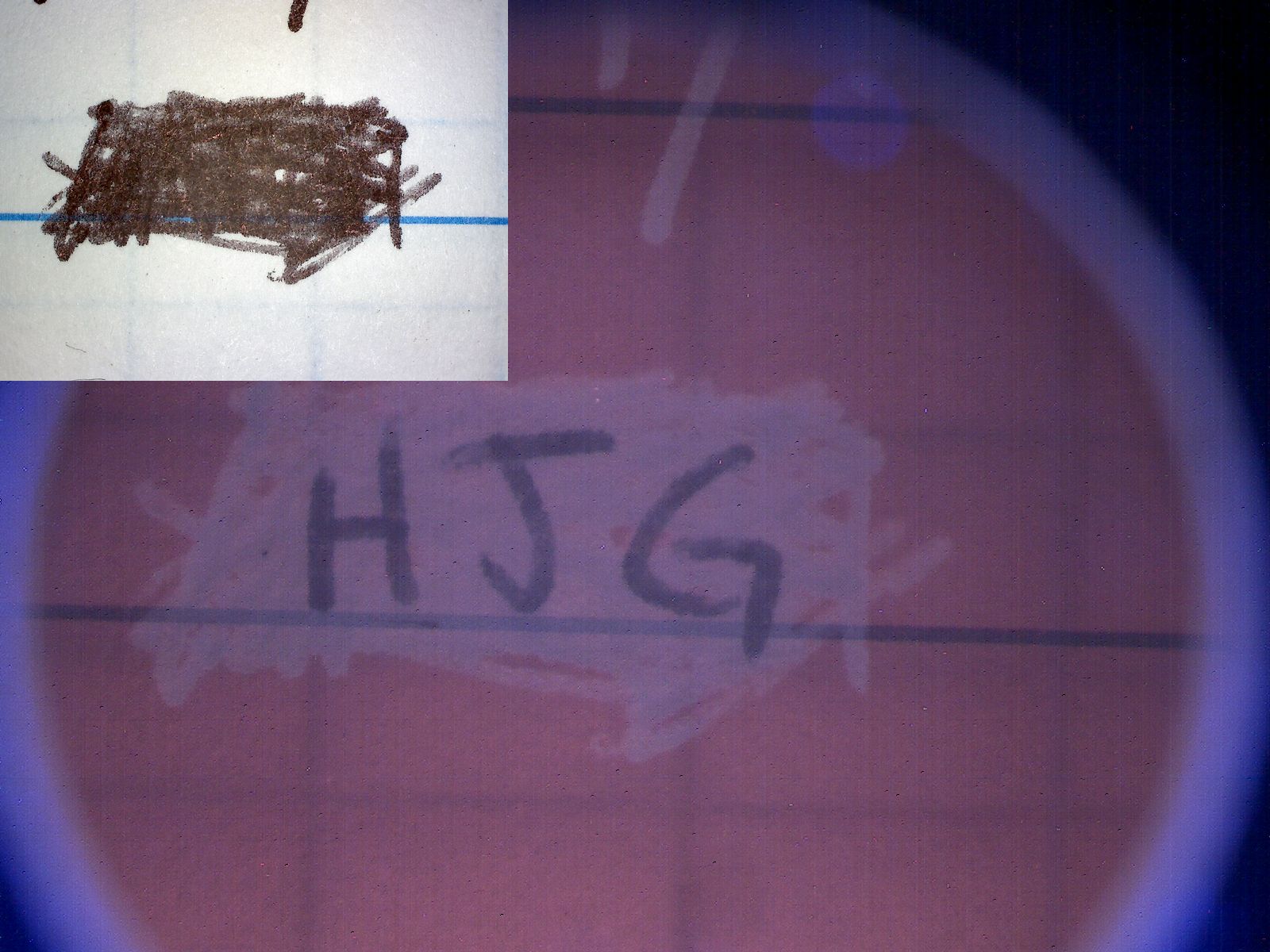

Obscuration under filter wheel
(inset shows white light image)

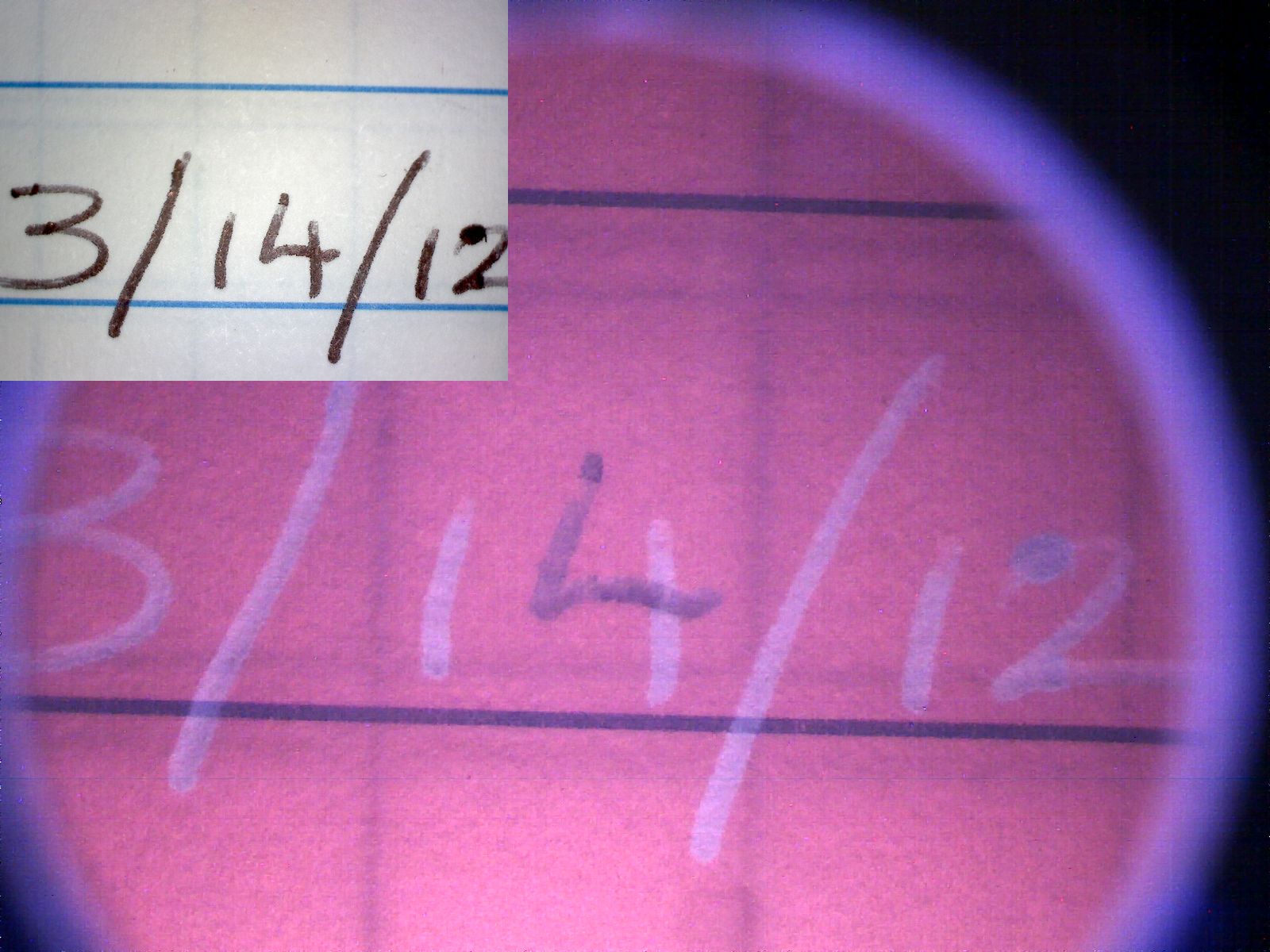

Altered date under filter wheel
(inset show white light image)

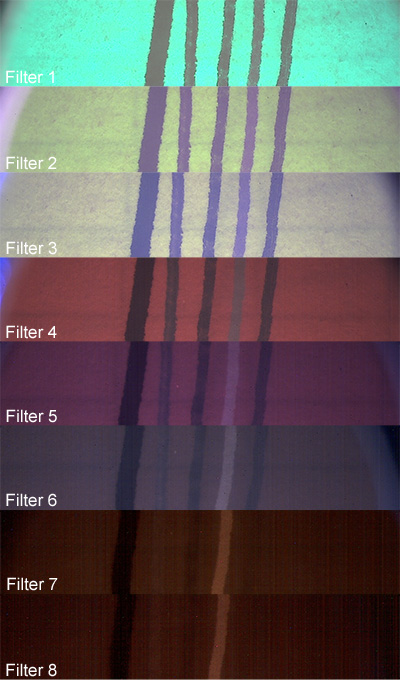

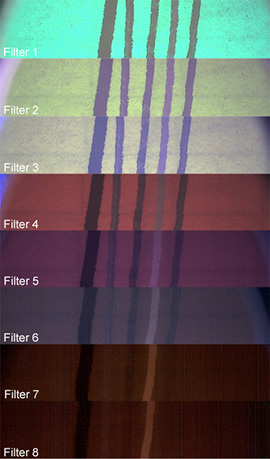

Ink samples shown under each
of eight different filters




  Part Number Price



Filter wheel/stand with 8 filters and 2 LED sources, LED power supply and 9 volt battery; includes calibration certificate for filters. For use with MiScope Megapixel 2 (not included and must be purchased separately). One year warranty.


Warning: Contains UV LEDs. Do not expose eyes or skin to rays.

  These units are not recommended for unsupervised use by children.
  • UV and Blue high power LED light sources (individually selectable) for excitation for use with MiScope Megapixel 2 (not included)

  • Eight selectable barrier cutoff filters from 490 to 780 nm.
  • Battery powered
  • 1 year Limited Warranty
  • Forensic document examination
  • Fluorescence imaging
