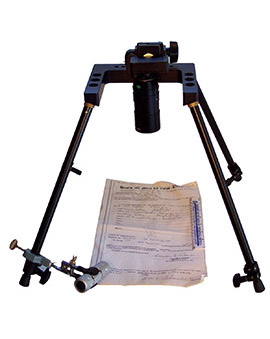

TetraCam Portable Digital Video Microscope
The TetraCam is a portable digital microscope and macro imaging system. The 1-40x magnification system is quick to setup and easy to use. It will image from a full page down to the individual specks of laser printer toner using the 2.0 megapixel camera, which has four times the resolution of a conventional video camera. There is a large working distance with plenty of room to position your samples. The stand allows adjustment of height and camera angle while the camera's quick release mount provides for hand-held use.
The TetraCam includes a range of lighting systems. Use the fluorescent lamp for large area imaging. The supplemental LED light adds brightness at high magnifications and also provides oblique illumination to look at surface features like paper fibers and signature indentation.
The included Video ToolBox PRO software provides an easy-to-use interface for image and movie capture, labeling, annotation and advanced measurement tools. It lets you place time stamps, grids and reticles over the live image; you can even draw directly on the live image. The camera also includes DirectShow and TWAIN drivers so it is compatible with most editing programs and image databases.
| Part Number | Price | |
| ZTC-203-10x-o2 | $1700 | |
|
||
- View straight down or at an angle
- High-resolution 2.0 megapixel camera (5.0 megapixel camera optional)
- Video ToolBox PRO Software to capture, record, annotate, measure (Video ToolBox Premier Optional)
- 1-40x zoom magnification
- Forensics:
Questioned Documents (Visible & IR);
Fingerprints (exceeds 1000 dpi);
Trace Evidence;
Forensic Anthropology - Manufacturing
- Quality Inspections
- Field Science
- Optical Magnification: 1— 40x
- Field of View:
8.2" x 10" at 1x
0.24" x 0.31" at 40x
Camera
- Array Size: 1600 x 1200, 2.0 megapixel
(optional 2592 x 1944 5.0 megapixels) - S/N Ratio: 54 dB
- Min. Illumination: 0.028 lux (with IR filter removed)
- Frame Rate: 15
- Interface: USB 2.0
Illumination
- Laboratory: 13 Watt Fluorescent Flood, 120 volts, US AC adapter
- Portable: LED flashlight
Software
- Capture Program: Video ToolBox PRO
- Drivers: DirectShow and TWAIN compliant
- Windows XP/VISTA/7/8/10 (32 or 64 bit)
- MAC OS X 10.6+ (Mac Software Optional)
- Free USB 2.0 Port
- DirectX 8.1 or greater (for Windows)
- Pentium IV 1.6+ GHz (Core 2 Duo, 1.5+ GHz recommended)
- 1+ GB of Free Memory (2+ GB recommended)
- Video card with 64+ MB of video RAM, minimum 800 x 600 resolution at 16-bit (65,000 colors)
