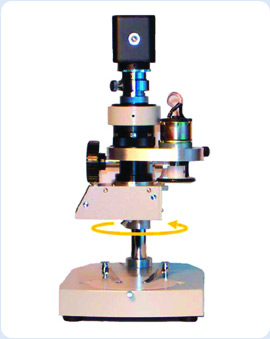

ZDM-360 Panoramic Digital Microscope with Variable Speed Motor Drive/Manual
The ZDM-360 Panoramic Digital Video Microscope adds a new dimension to portable inspection. View the sample from above, or switch to an angled view — up to 45 degrees from any direction. The variable speed motor drives the viewing head to produce a 360° panoramic view (which can be recorded) for more complete inspection and documentation. The 2.0 megapixel color camera provides four times the resolution of a standard video camera with excellent color reproduction and high sensitivity over a wide range of magnifications. The zoom lens provides a 9 — 65x magnification range. A 150 watt halogen lamp with dual fiber bundles or Zlite2 is included to provide ample light to completely illuminate the sample from all directions.
ZDM-360 is available in manual and motor driven configurations.
The included Video ToolBox PRO software provides an easy-to-use interface for image and movie capture, advanced labeling, annotation and measurement. The camera also includes DirectShow and TWAIN drivers so it is compatible with most imaging programs and databases.
ZDM-360 can also be used in still motion and to capture still images like a ZDM Digital Microscope System.
| Part Number | Price |
| ZDM360MOTOR-203-65X-o2 | $5500 |
| ZDM360MANUAL-203-65X-o2 | $4500 |
ZDM-360 Panoramic Digital Microscope with Variable Speed Motor Drive
A high-resolution digital microscope with motorized or manual rotating head. Motor drives head 360 degrees for automated viewing and includes a 2.0 million pixel color cameras (1280 x 1024) macro lens with 9 – 65x zoom, adjustable stand, variable intensity LED dual 2 watt illumination to illuminate all sides of the sample. Includes Video ToolBox PRO software for advanced display, capture, annotation and advanced measurement of images. One Year warranty.
- View straight down or at an angle
- Rotate the view 360° without moving the sample
- 9-65x zoom magnification lens with detents
- High-resolution 2.0 megapixel camera (5.0 megapixel camera optional)
- Video ToolBox PRO Software to capture, record, annotate, measure (Video ToolBox Premier Optional)
- Available in Motorized or Manual Versions
- Optical Magnification: 9 — 65x with detents
- Field of View:
0.90" x 0.67" at 9x
0.14" x 0.10" at 65x - Viewing Angle: 0 — 45°
- Standoff: 3.75” to lens (rotary head removed)
Camera
- Array Size: 1600 x 1200, 2.0 megapixel
(optional 2592 x 1944 5.0 megapixel)
- S/N Ratio: 54 dB
- Min. Illumination: 0.028 lux
- Frame Rate: 14.33/sec. (1280 x 1024) 30/sec. (640 x 480)
- Interface: USB 2.0
Illumination
- Laboratory: Zlite2 or 150 W dual halogen fiber gooseneck
- Portable: USB powered LED bar light
Software
- Capture Program: Video ToolBox PRO
- Drivers: DirectShow and TWAIN compliant
- Windows 2000/XP/Vista/7/8/10
- Free USB 2.0 Port
- DirectX 8.1 or greater
- Pentium III 1.0 GHz or faster (P4, 1.5+ GHz recommended)
- 128 MB of Free Memory (256+ MB recommended)
- Video card with 16 MB of video RAM, minimum
- 800 x 600 resolution at 16-bit (65,000 colors)
